Sizes and Styles

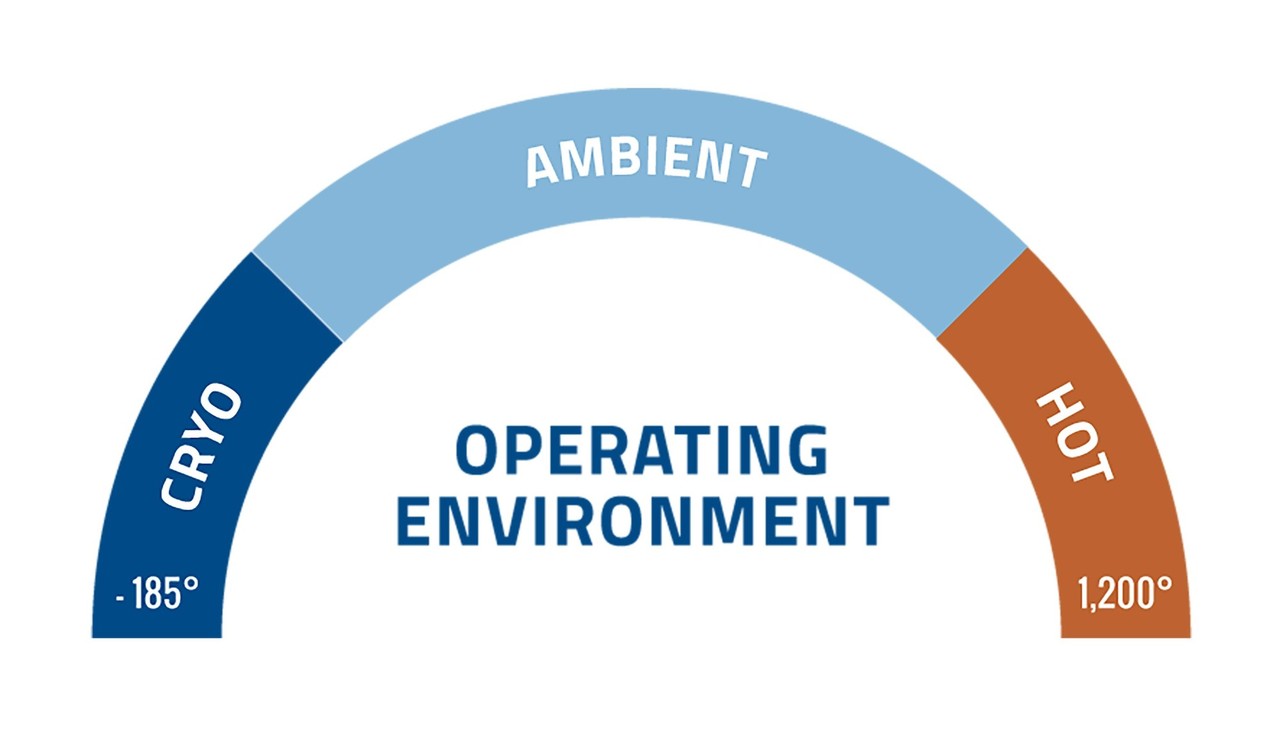

Match your inspection ports to your process temperatures:

Cryo Service Ambient Service Hot Service
-120.5°C/-185°F - 0°C/32°F -40°C/-40°F - 315.5°C/600°F 315.5°C/600°F - 648.8°C/1200°F



Ambient Service

Available with Aluminum or Stainless Steel flanges.

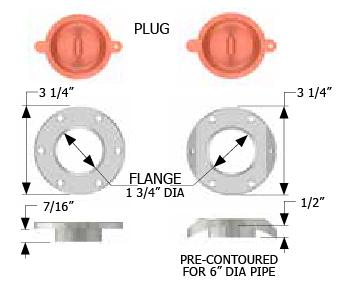

1 3/4" Inspection Port

2 1/2" Inspection Port

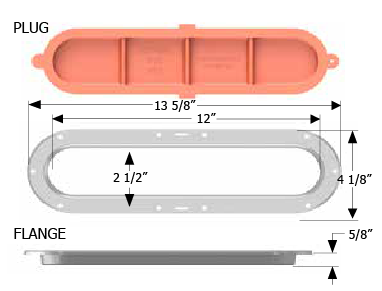

2 1/2" x 12" Inspection Port

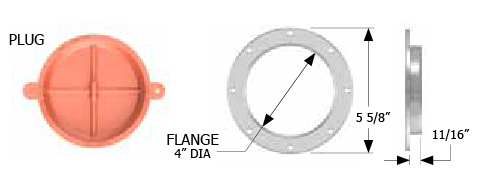

4" Inspection Port

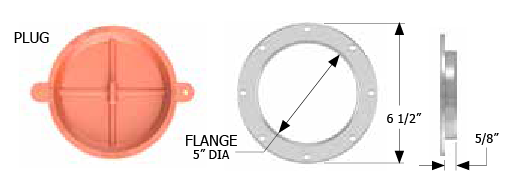

5" Inspection Port

Hot Service

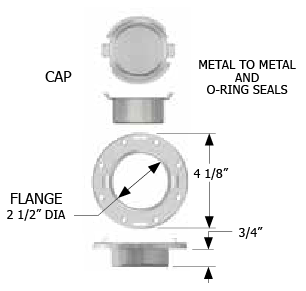

HT-1

2/12" Inspection Port

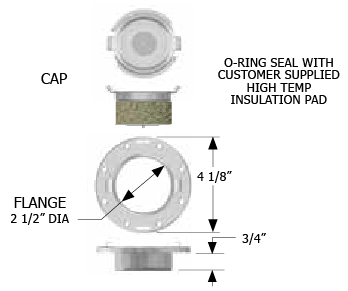

AG-1

2 1/2" Inspection Port

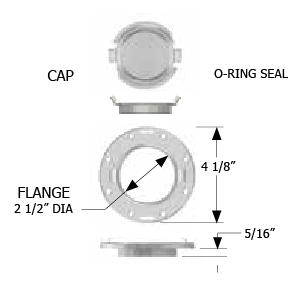

HT-2

2 1/2" Inspection Port

Cryo Service

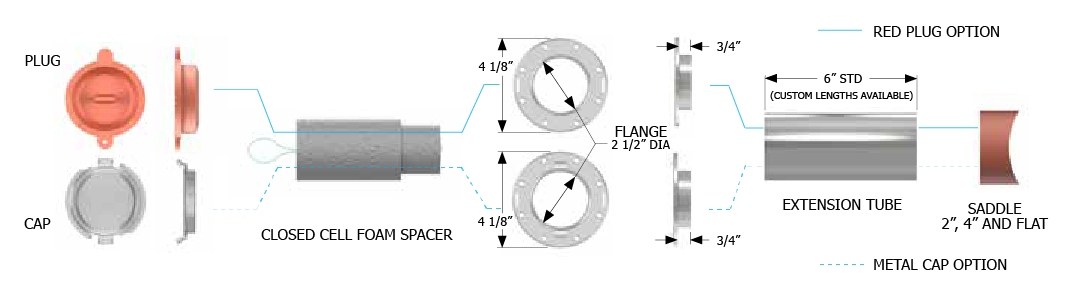

2 1/2" Inspection Port

Notes

  • Neoprene corrugated transition gasket available for 2 1/2”, 4”, and 5” ambient service inspection ports
  • All flat flanges can be field contour.
